Moody 38 CC Eclipse Specification
Model Overview

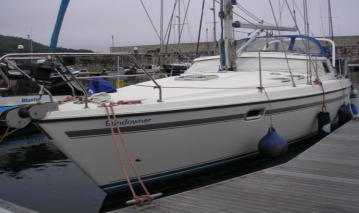

Moody Eclipse 38 Introduced: December 1990 Ceased: February 1992 Built by: Marine Projects (Plymouth) Limited Designer: Bill Dixon Boats Built: 24 The deck layout is designed and styled so that the saloon area has excellent all-round visibility from both the interior helm station and the seating and dining areas. The Eclipse 38 has a headsail and inmast, furling systems and twin steering positions. The interior accommodation is laid out with two main sleeping cabins: the Owners stateroom forward and an aft guests cabin situated to starboard. Owners Heads compartment situated to port with a marine wc, hot & cold water system and separate shower. The main heads compartment to starboard is similarly equipped. The large, light and airy deck saloon has a raised seating area to port providing a U-shaped seating area. Galley to port.
Technical Specification
Products and Resources
Hatches
Windows
Doors
Spares Kits
In Association with Seaglaze Marine Windows
PRINCIPAL DIMENSIONS LOA 11.43m 37'6" LWL 9.82m 32'2.5" Beam 3.96m 13'0" Draft 1.37m 4'6" Displacement 7373 kg /16,250 lbs Ballast 2950 kg /6500 lbs
Documentation

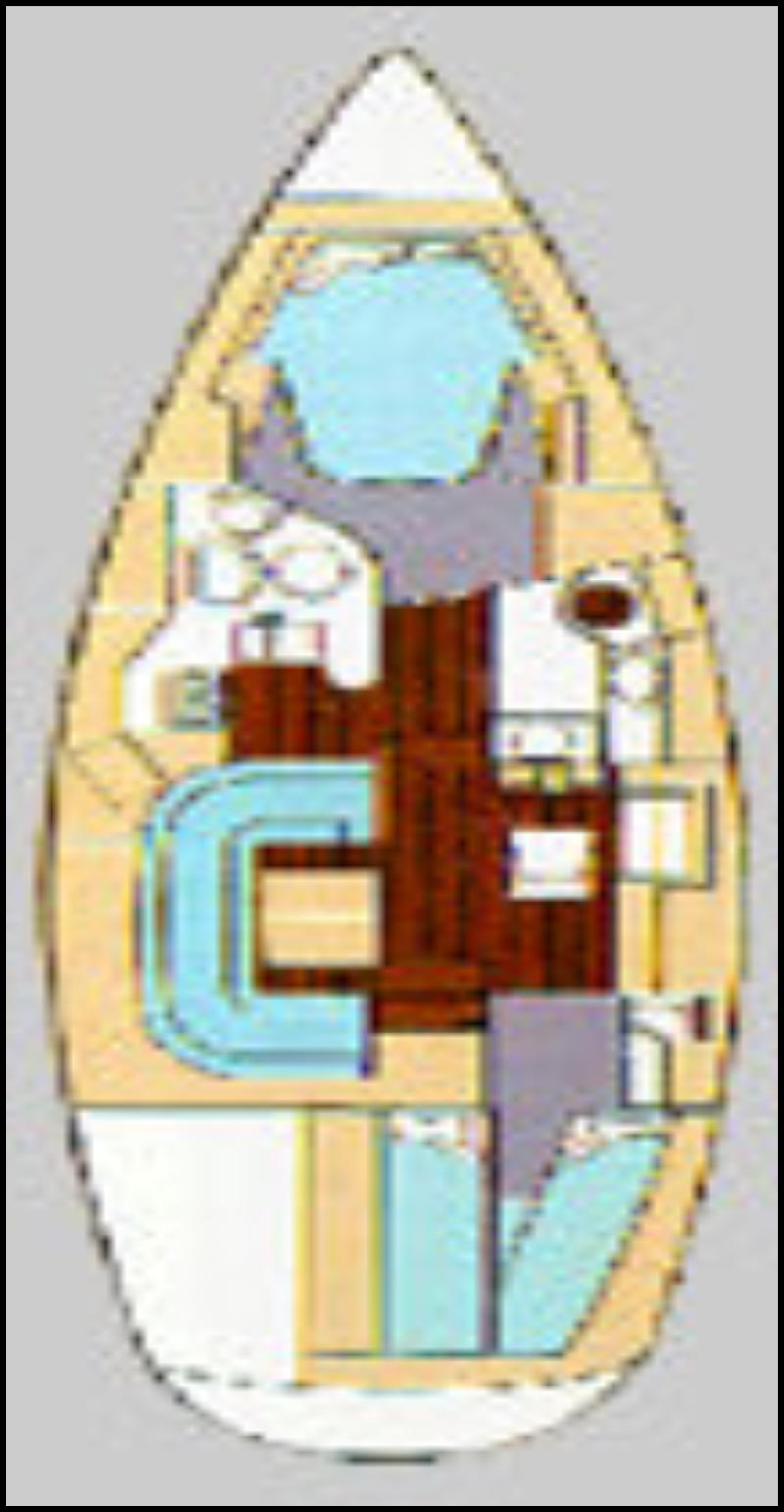

GA Layout
.Pdf Version Documentation

Insert Lower Resolution GA Image

Here
